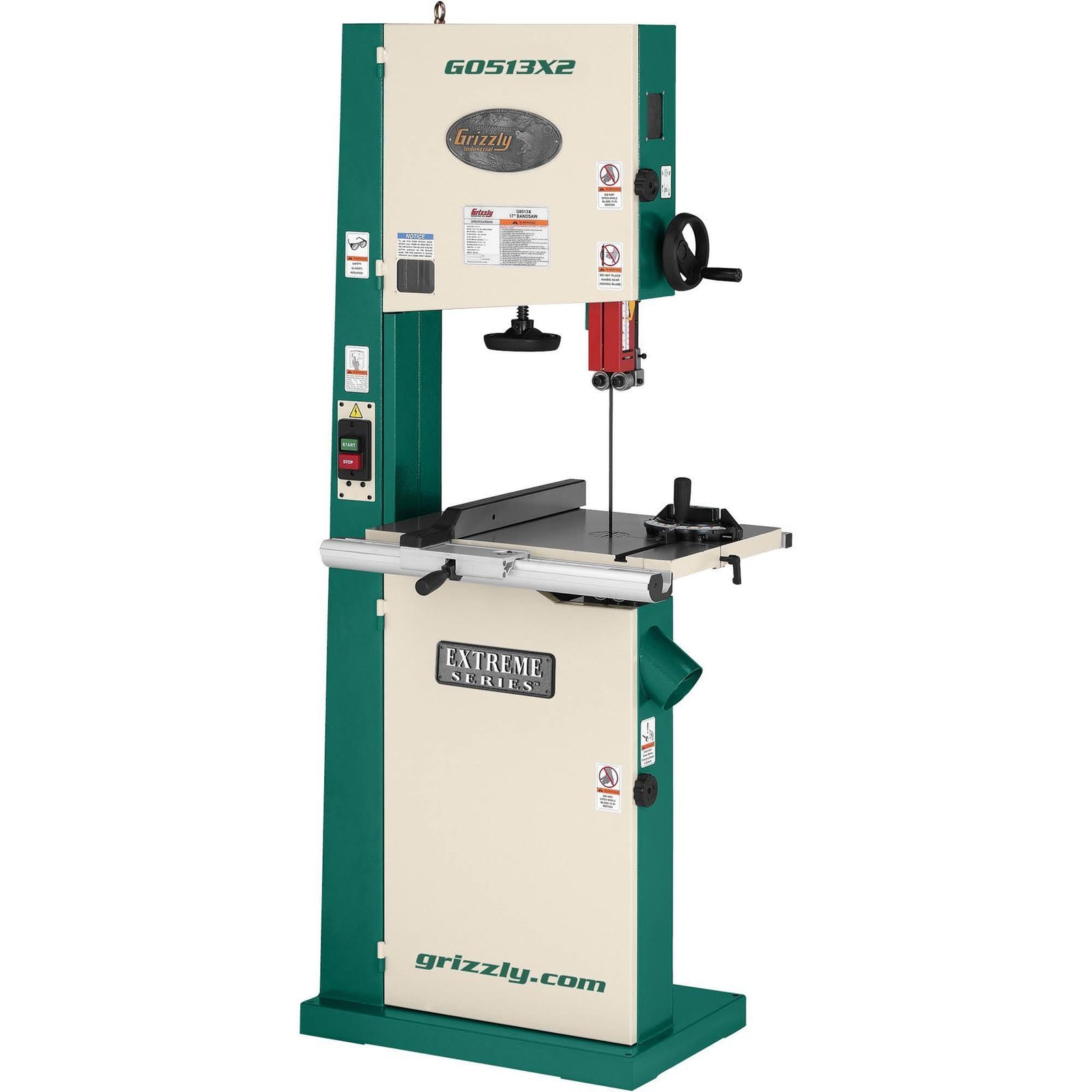

Grizzly G0513X2 – 17″ 2 HP Bandsaw w/ Cast-Iron | Free US Shipping

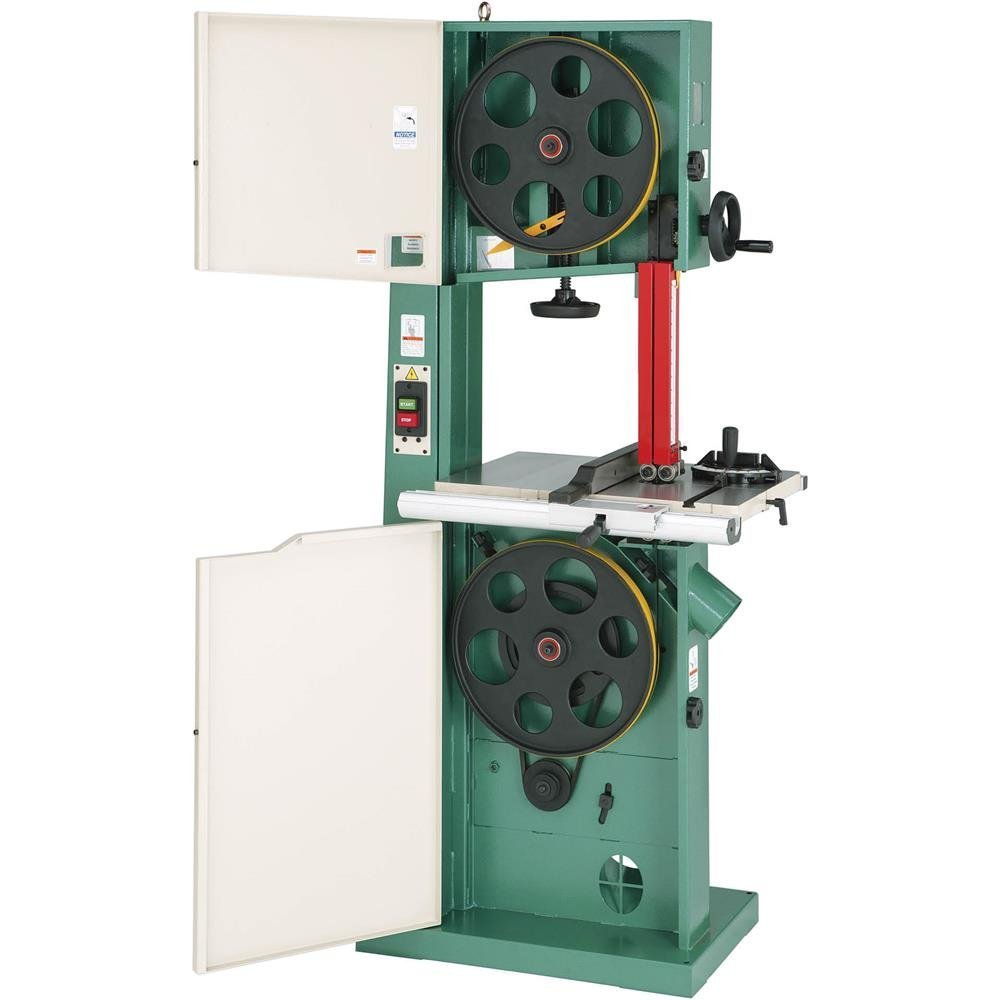

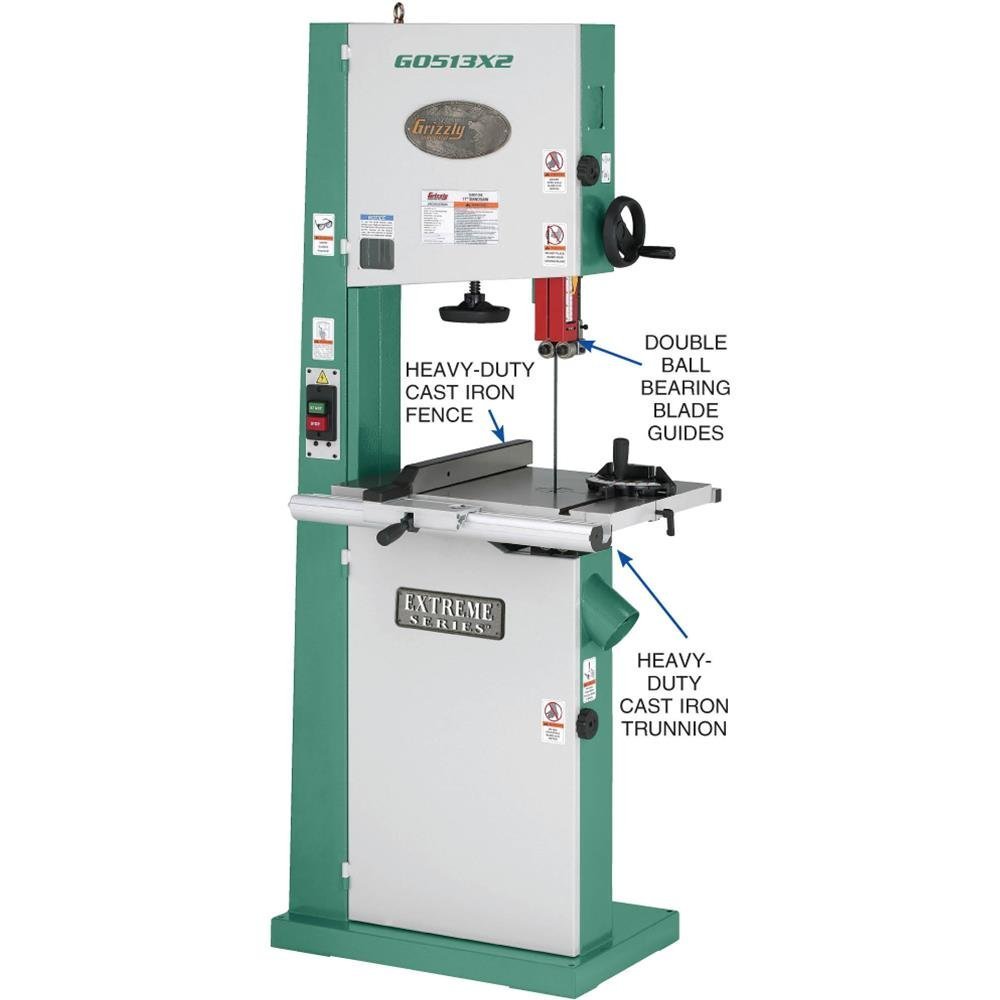

Grizzly G0513X2 – 17″ 2 HP Wood Bandsaw. From top to bottom, this woodcutting bandsaw is built to perform. The G0513X2 17″ 2 HP Bandsaw features a heavy-duty cast-iron trunnion and double ball-bearing blade guides usually only found on machines costing much, much more. The 2 HP motor powers through hardwoods with a 12-1/8″ cutting height and 16-1/4″ throat provide ample cutting capacity for most applications. The G0513X2 has a large 23-5/8″ x 17-1/4″ cast-iron table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table. Power and capacity are just a part of why owners continue to give this bandsaw a solid 5-star rating. The stout steel frame houses the heavy computer-balanced cast-iron wheels designed to minimize vibration during resaw operations. This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the 220V operation requirements. If you prefer 110V, refer to the Voltage Conversion instructions in the manual. The G0513X2 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw. Made in an ISO 9001 factory. CSA certified.

Key Features

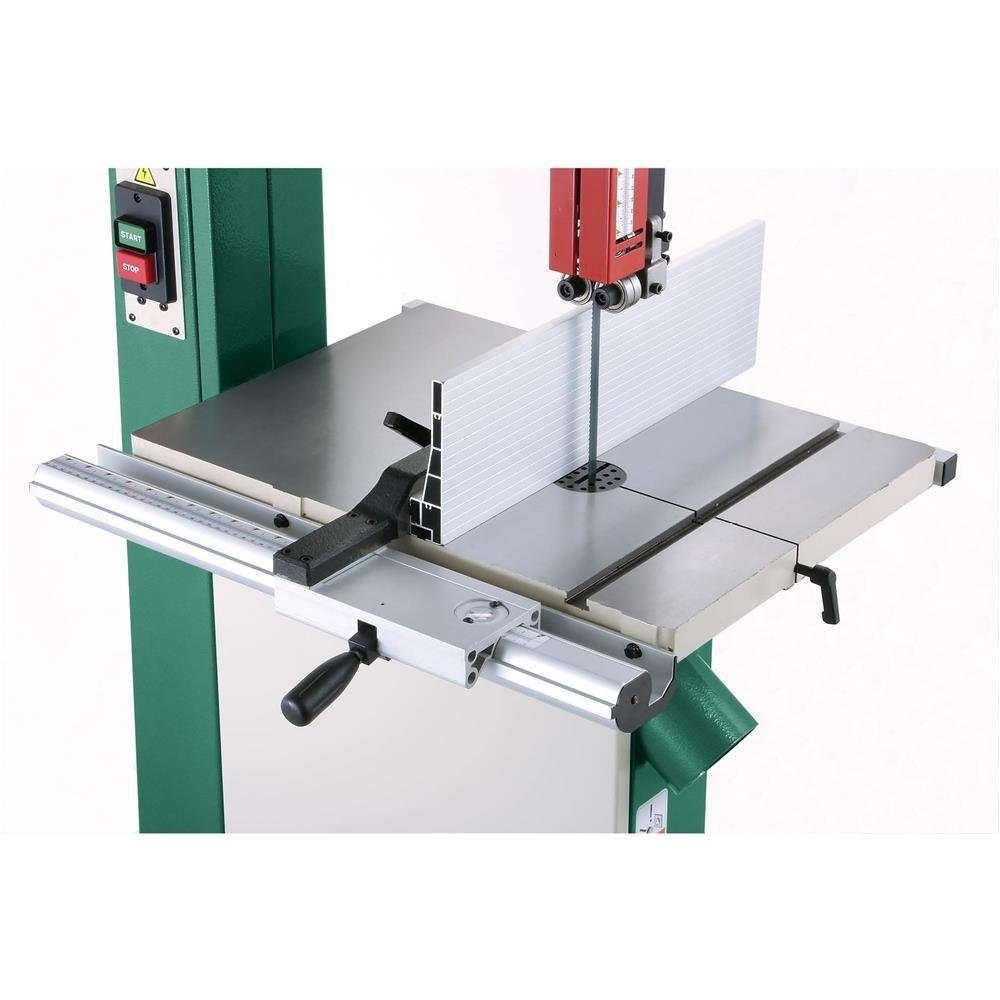

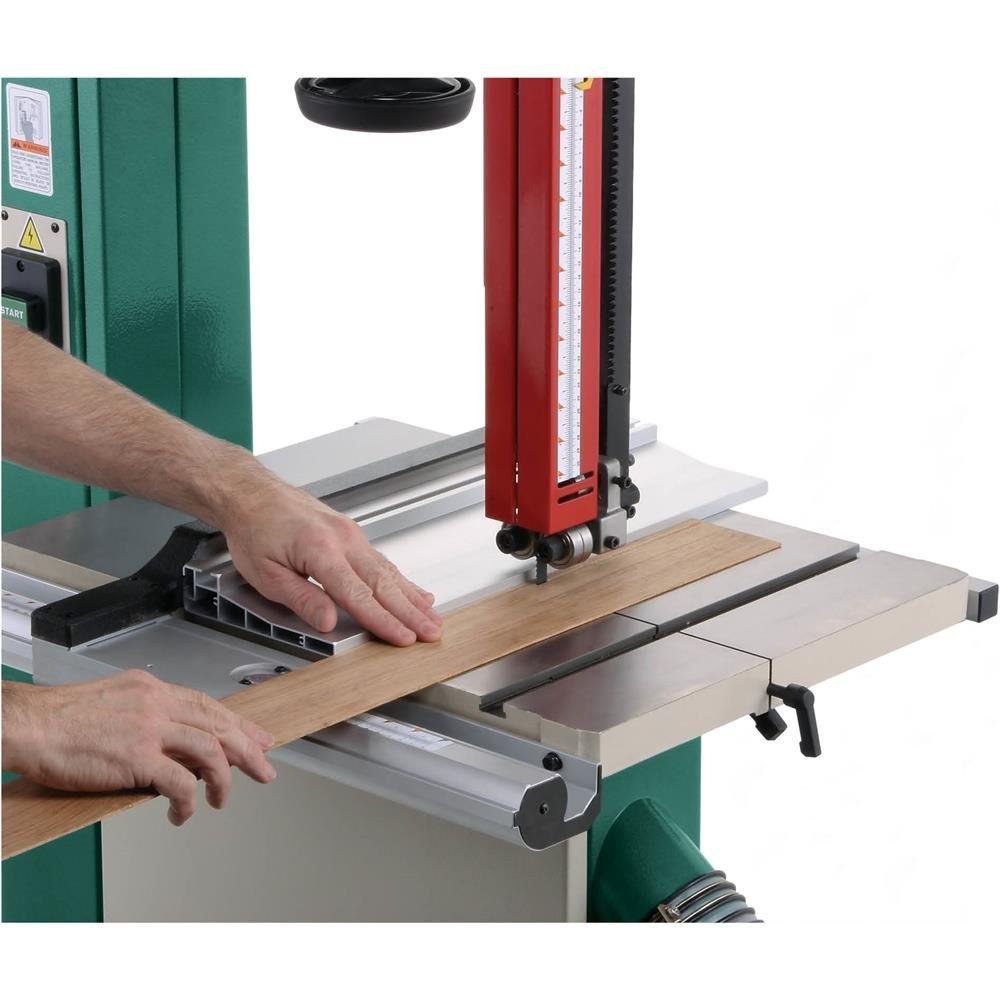

• Deluxe cast-iron fence with extruded aluminum resaw fence attachment.
• Magnifying window over fence scale.
• Precision-ground cast-iron table.
• Quick-change blade release/tensioner.
• Blade tension indicator.
• Micro-adjusting geared table.
• Blade height scale measurement.
• Blade tracking window.

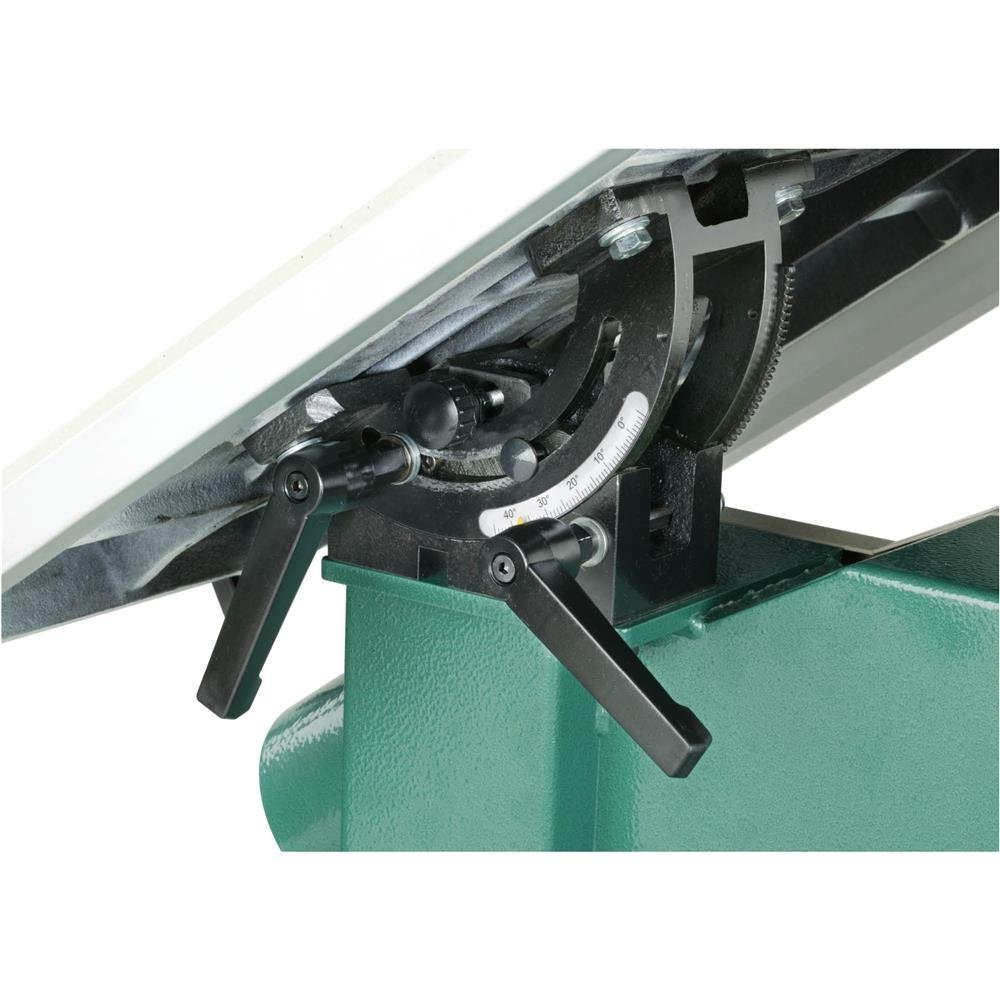

• Cast-iron table trunnions.

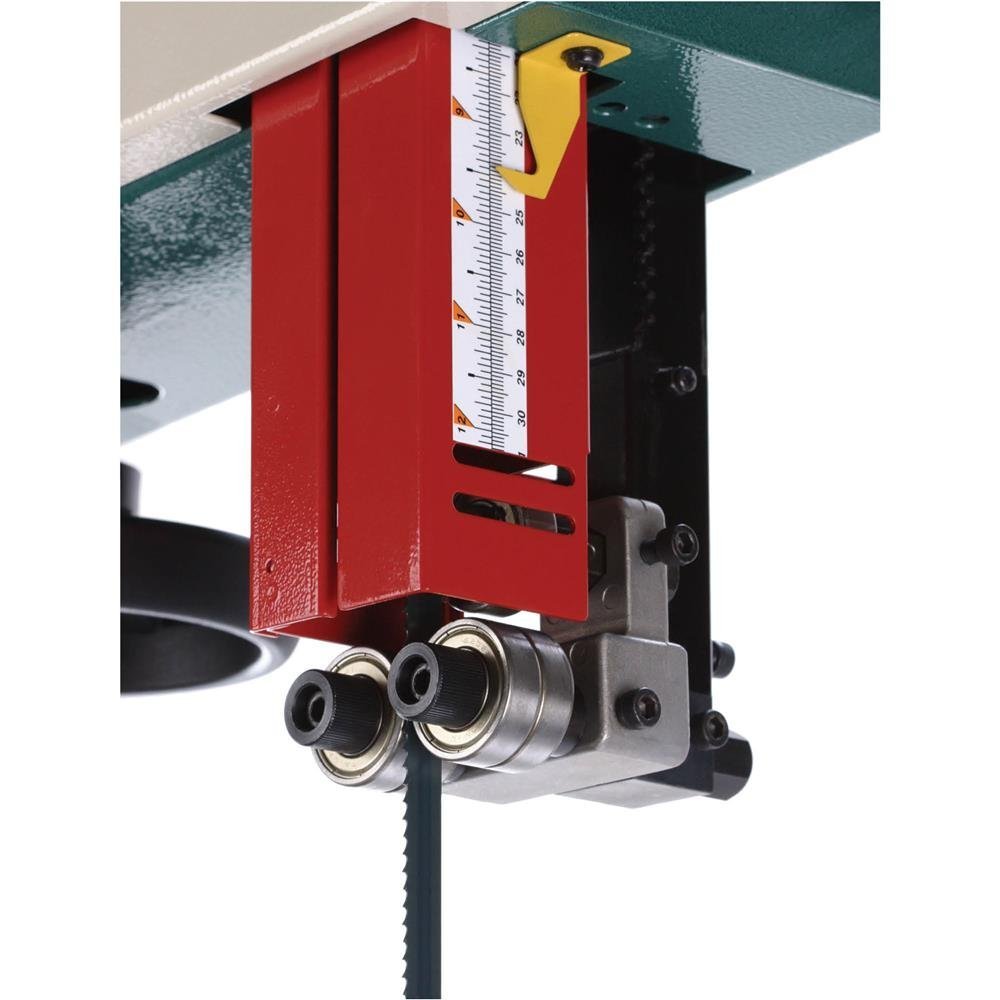

• Fully-enclosed ball-bearing blade guides.
• Miter gauge.
• Includes 1/2″ 6-TPI hook blade.
• 1-year limited warranty.

Specifications

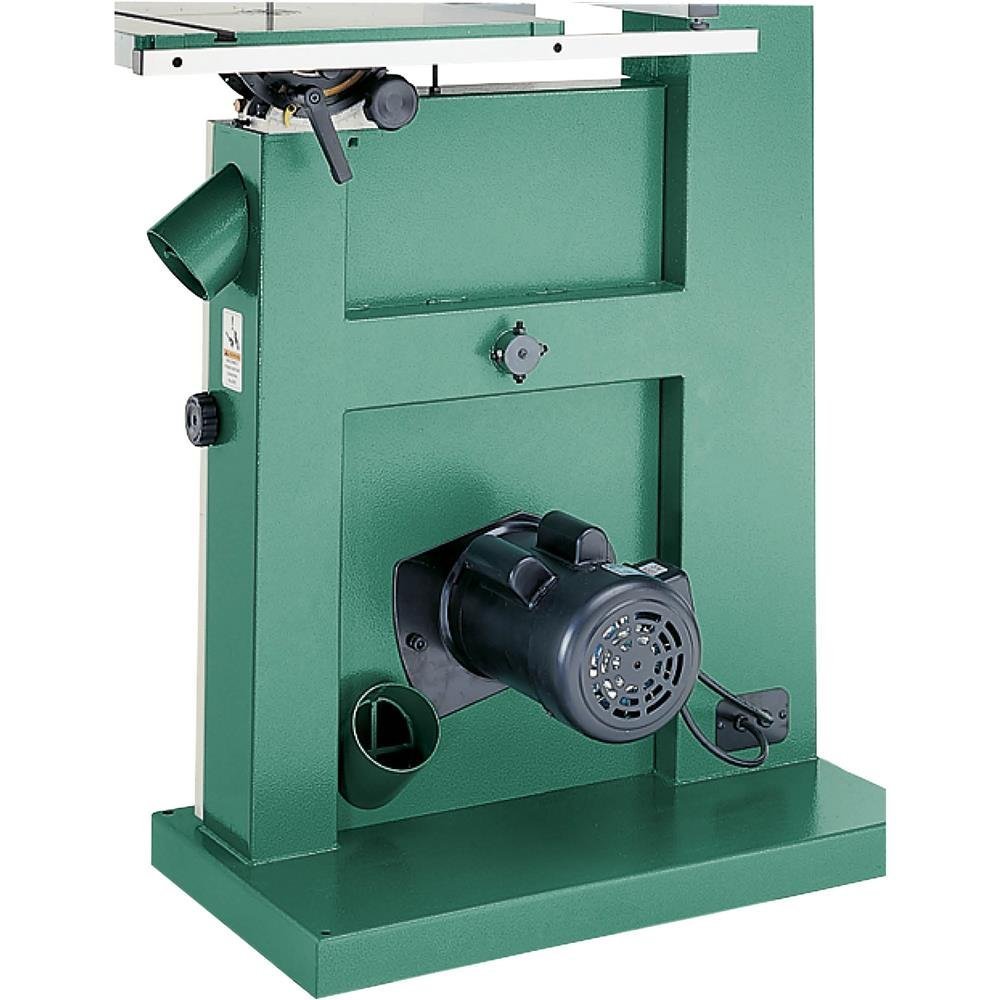

• Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 19A/9.5A; Throat (max. width left of blade): 16-1/4″; Resaw capacity: 12″; Blade size: 131-1/2″ long; Blade width range: 1/8″–1″ wide; Blade speeds: 1700, 3500 FPM; Table size: 23-5/8″ x 17-1/4″; Table tilt: 5° left, 45° right; Floor to table height: 37-1/2″; Footprint: 27″ W x 18″ D; Overall size: 32″ W x 32″ D x 73″ H; Approximate shipping weight: 421 lbs.
• Note: the G0513X2 does not come with a plug. The recommended plug type is L5-30 for 110V or 6-15 for 220V.

Frequently Asked Questions

What is the motor?
2 HP, 110V/220V (prewired 220V), single-phase, 19A/9.5A.

What is the resaw capacity?
12″.

Does it come with a plug?
No — the G0513X2 does not come with a plug. The recommended plug type is L5-30 for 110V or 6-15 for 220V.

Free US shipping across the USA. Order the Grizzly G0513X2 – 17″ 2 HP Bandsaw today.
