Bendpak GrandPrix GP-9LC 9000 Lb. Capacity 2 | Free US Shipping

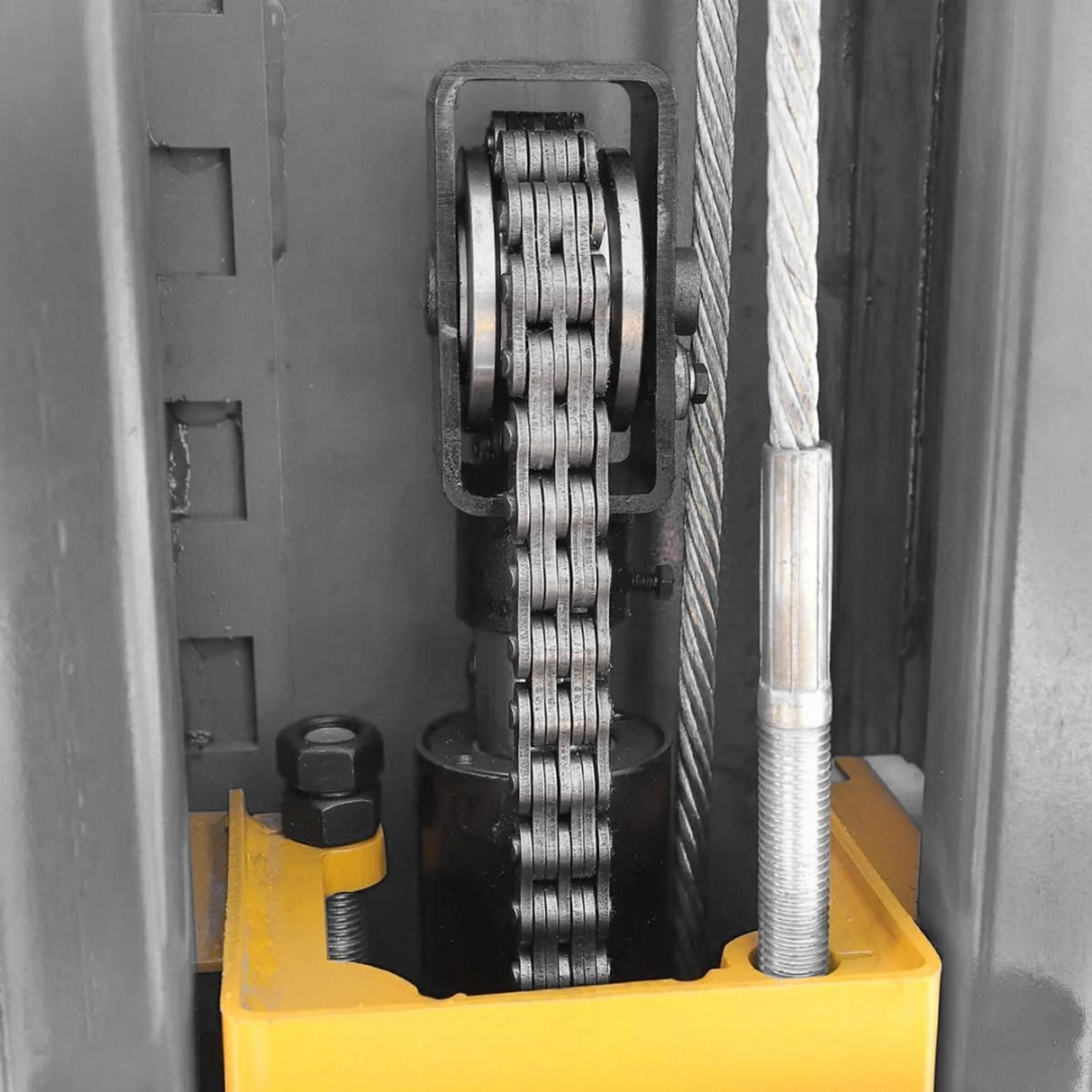

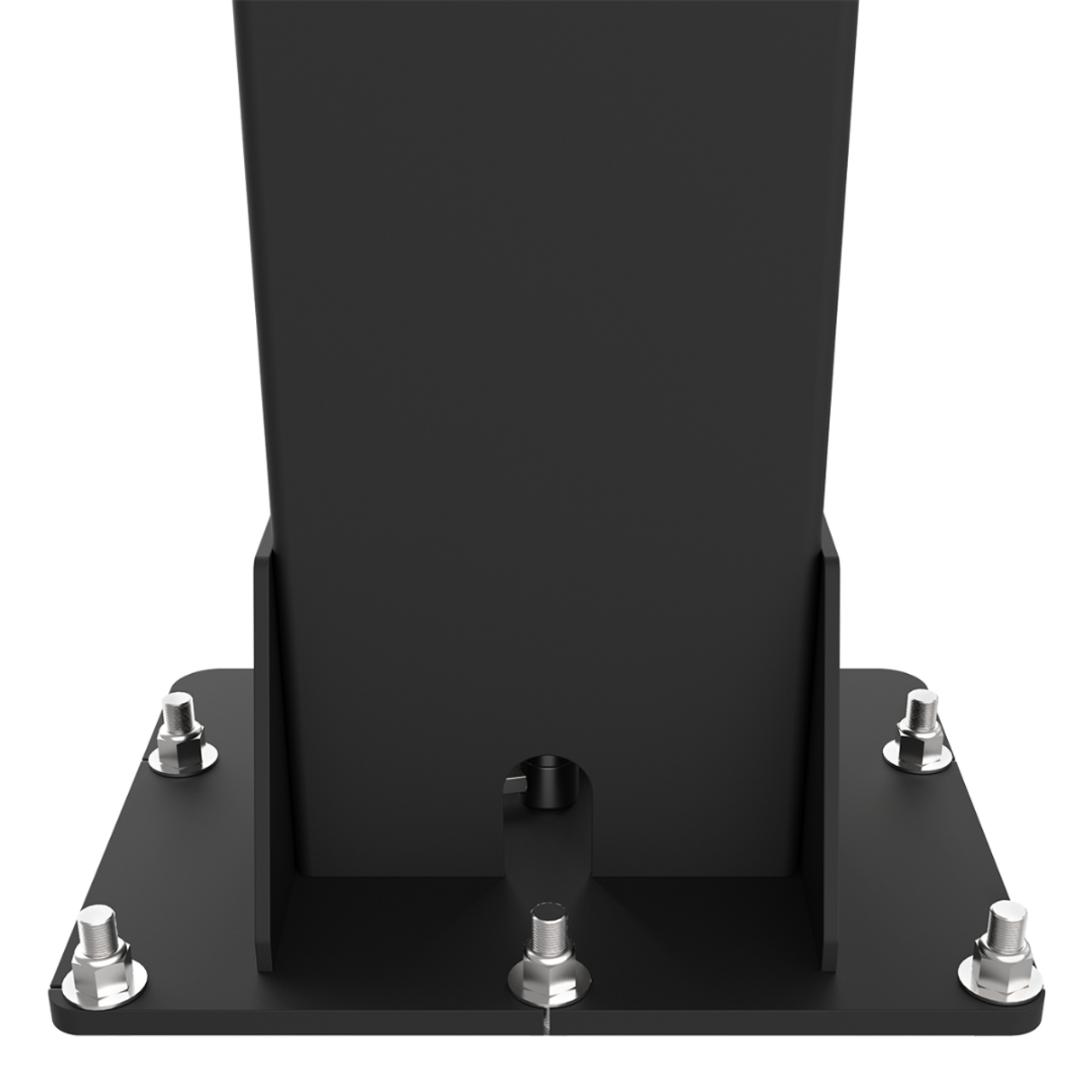

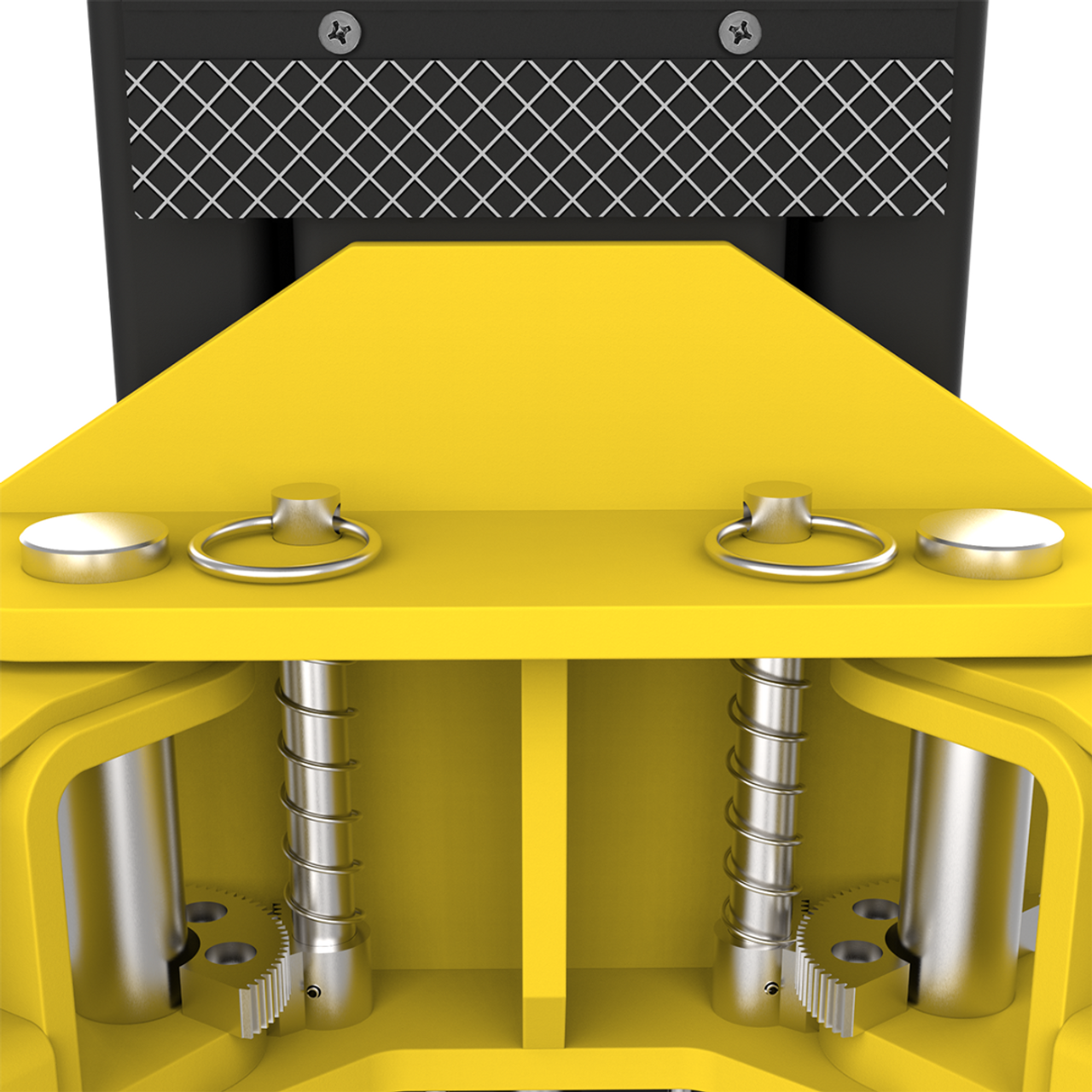

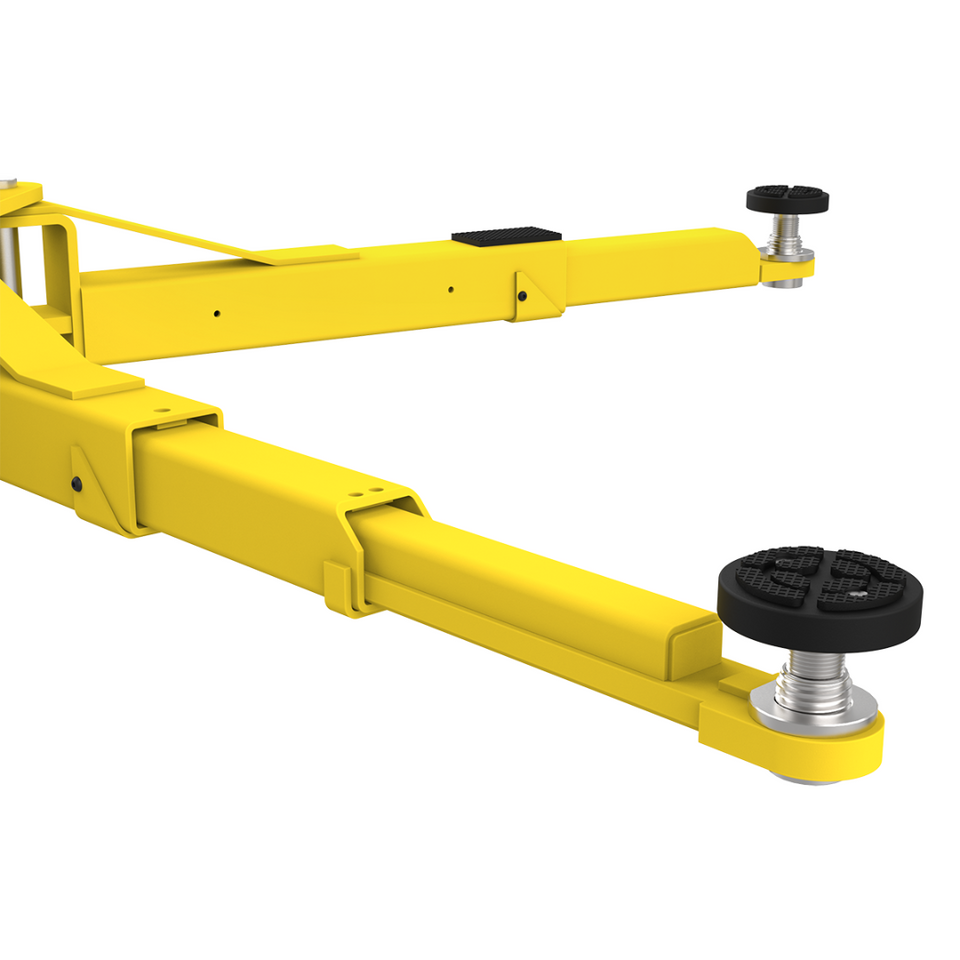

Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do. Features 9,000-lb. lifting capacity. Symmetric and asymmetric arm design for enhanced versatility. Triple-telescoping front arms & dual-stage extended rear arms. Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability. Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength. Electric-hydraulic power system for effortless operation. Oversized 20.5″ x 15.5″ base plate for increased stability. Self-lubricating UHMW polyethylene guide blocks for long-lasting durability. Safety locks in each column spaced every 3 inches. Automatic arm restraints for enhanced safety. Heavy-duty 1/2″ aircraft-quality equalizer cables. Oversized cable sheaves to reduce cable fatigue. Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability. Full size rubber carriage guard reduces door dings. 4-piece 63mm stackable adapter set included. 10-piece concrete wedge anchors included. Specifications Lifting Capacity 9,000 lbs. (4,082 kg) Max. Capacity / Front Axle 4,500 lbs. (2,045 kg) Max. Capacity / Rear Axle 4,500 lbs. (2,045 kg) A – Height Overall 109.5″ (2,781 mm) B – Width Overall (at Baseplate) 137.25″ (3,486 mm) C – Width Outside of Columns 127.5″ (3,238 mm) D – Floor To Drive-over Height 1.25″ (30 mm) E – Width Inside Columns 113.5″ (2,880 mm) F – Front Arm Reach (Min.) 22.5″ (571 mm) F – Front Arm Reach (Max.) 43.25″ (1,099 mm) G – Rear Arm Reach (Min.) 33.5″ (845 mm) G – Rear Arm Reach (Max.) 53.25″ (1,353 mm) H – Min. Pad Height 3.9″ (100 mm) I – Rise 70″ (1,778 mm) J – Max. Lift Height (Pad + 63mm Adapt.) 76.5″ – 78.5″ (1,943 – 1,994 mm) K – Drive-Thru Clearance 103″ (2,618 mm) Screw Pad Adjustment 2″ (51 mm) Motor 220 VAC / 60Hz / 1 Ph Time of Full Rise 65 seconds Max. Load Per Arm 2,250 lbs. (1,023 kg) Shipping Weight 1,385 lbs. (630 kg)
